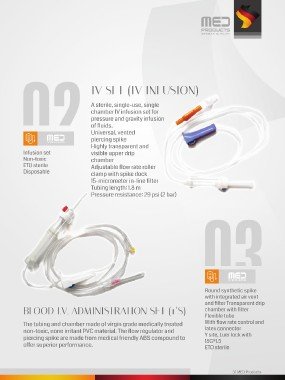

IV SET (IV INFUSION)

A sterile, single-use, single 04
chamber IV infusion set for
pressure and gravity infusion
of fluids.
Universal, vented
piercing spike
IV-INFUSION IV-INFUSION
Highly transparent and
18G, 20G, 22G, 24G Infusion set visible upper drip
USP standards Class Non-toxic chamber
VI compliance, ETO sterile Adjustable flow rate roller
thin-walled Catheters Disposable clamp with spike dock
with PTFE, PUR, FEP 15-micrometer in-line filter
or ETFE Clear, Tubing length: 1.8 m
Radio-opaque
Pressure resistance: 29 psi (2 bar)

SOFT MED CANNULA

Gently tapered catheter tip aligns with the needle bevel to provide
smooth transition from needle to catheter.

The device is enable with flat wings, fold to allow secure fixation to 03
skin with fixation tapes.

The injection port has one-way silicon retreating valve to facilitate
extra medication by syringe without needle and to prevent back
flow. IV-INFUSION

Round synthetic spike
The valve cap has special design to facilitate two point grips for with integrated air vent
cannulation. and filter Transparent drip

BLOOD I.V. ADMINISTRATION SET (1’S) chamber with filter
The product is designed with transparent flashback chamber for Flexible tube
immediate confirmation of venipuncture and ensure smooth flow The tubing and chamber made of virgin grade medically treated With flow rate control and
of blood OR any other fluids. non-toxic, none irritant PVC material. The flow regulator and latex connector
piercing spike are made from medical friendly ABS compound to Y site, Luer lock with
Non-pyrogenic, Sterilized by Ethylene Oxide. offer superior performance. 18G*1.5
ETO sterile
